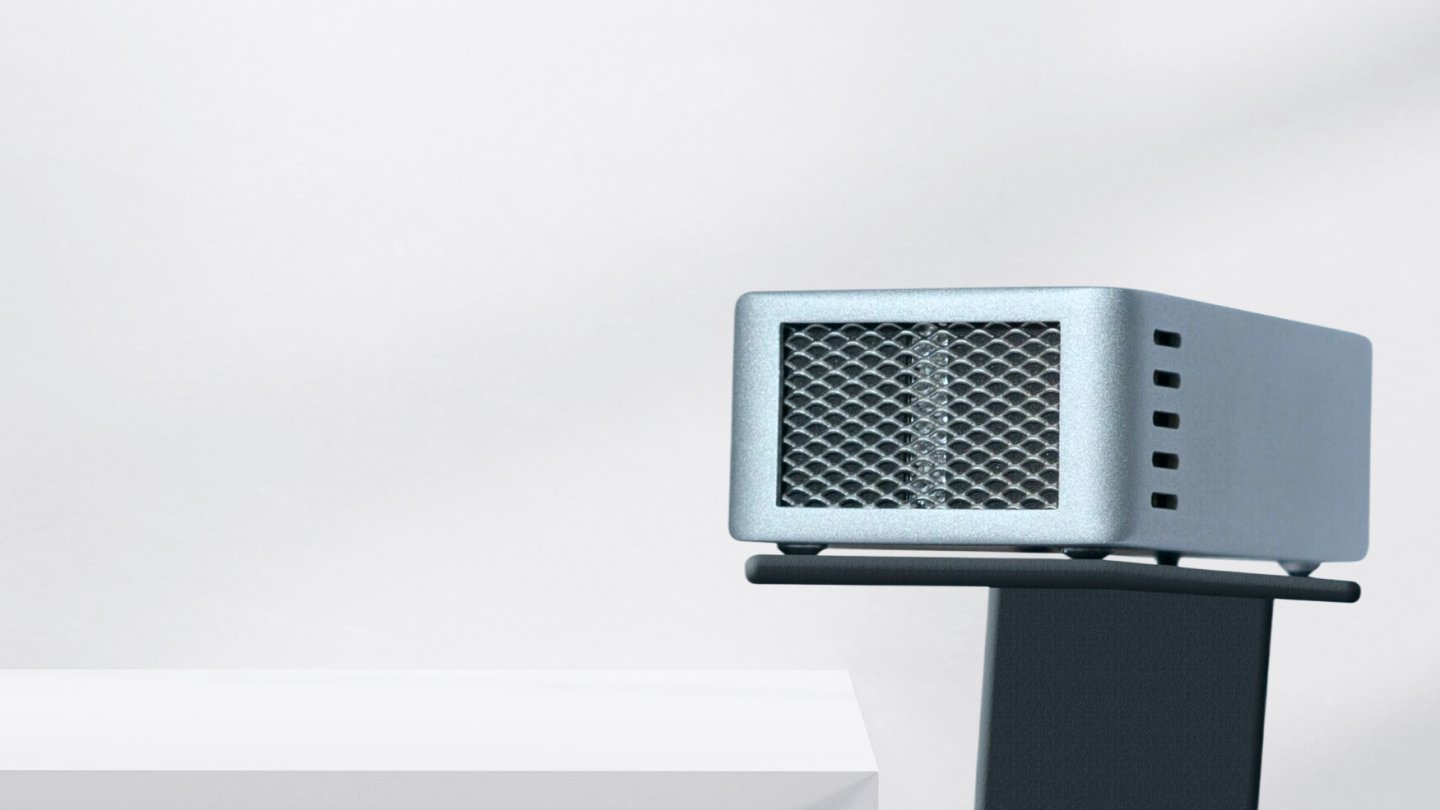

Supertweeters Reveal Detail – Visual Interpretation
| Frequency Resp. | Up to 90kHz. (See graph) |
| Amplifier power: | Up to 400W, unclipped music |
| Rating to DIN IEC 268: | 500w peak |
| Max sensitivity (2.8V @ 1m) | 89dB |
| Nominal impedance: | 11 ohm (min), rising to 20 ohm |

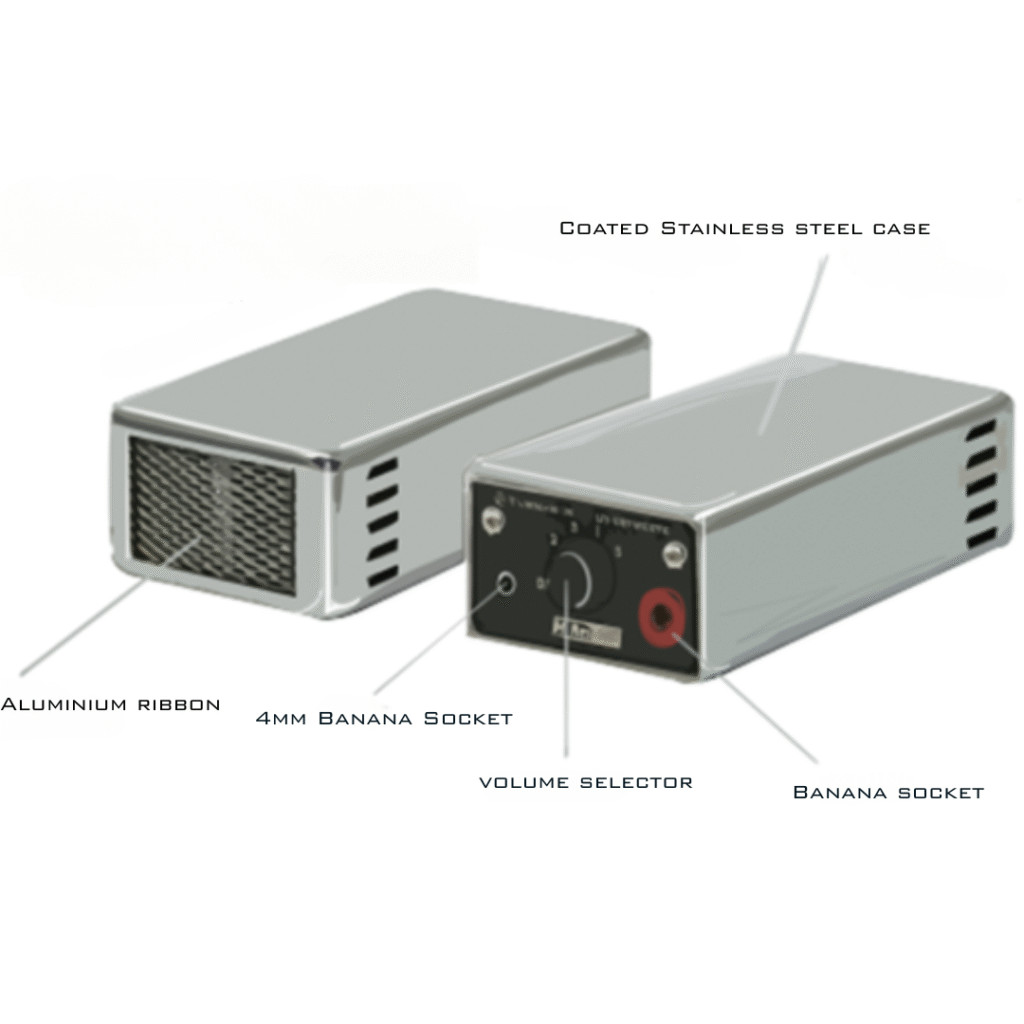

| Drive unit: | Pure aluminium ribbon.W 5mm, L 25mm, T, 0.01mm Mass 0.003grammes Ultra powerful rare earth neodymium magnets |
| Crossover: | First order |
| Level control: | 1: 74dB 2: 79dB 3: 83dB 4: 85dB 5: 87dB 6: 89dB |
| Dimensions: | Each W 50mm (2"), H 30mm (1.2"), D 100mm (4") Shipping (pair)W 250mm (10"), H 50mm (2"), D 200mm (8") |
| Weight: | Each 0.5 Kg (1.1lb) Shipping (pair) 1.2Kg (2.6lb) |
| Cable: | Banana or spade 1.5m |

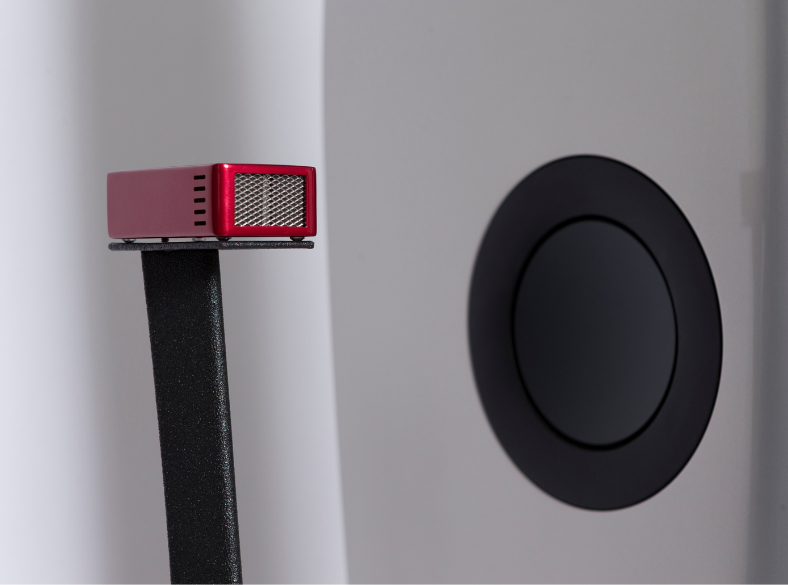

Native Dutchman Rene van Es explores the Psychoacoustic effects of the Townshend Supertweeters:
“I love these Supertweeters and will keep them on top of my PMCs to have that extra portion of adrenaline flowing in my veins when listening to my favourite music. Now I’m wondering if should I invest in a second pair for the Harbeths?”
In the early seventies, I made a version of the HQD speaker system which comprised two Hartley 24” bass drivers, a pair of stacked Quad ESL-57s and a pair of Decca Ribbon speakers (see http://www.marklev.com/systems/). The Decca’s were used as supertweeters here to augment the treble roll-off associated with the ESL-57s. Inevitably, the ribbons got damaged and repairs were routine and I became adept at repairing them. This system sounded awesome and I was a sad chappie when I had to leave all behind in Sydney when I came to the UK in 1978.

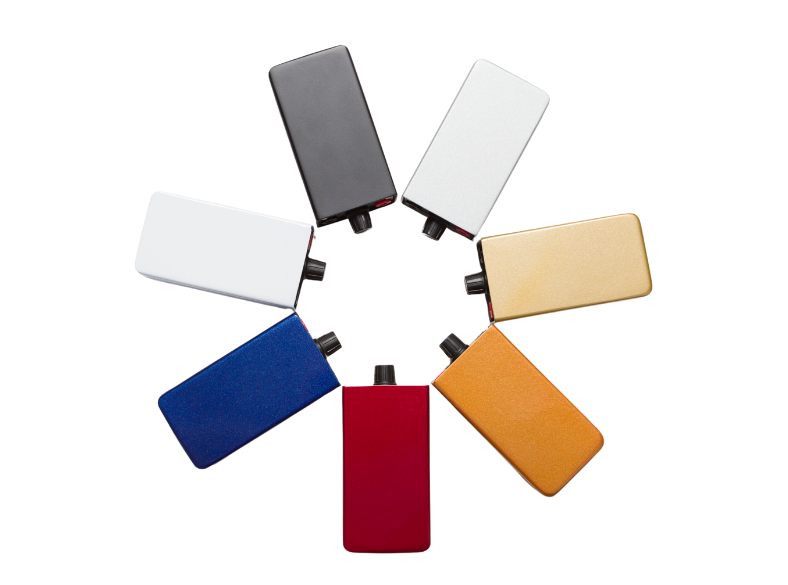

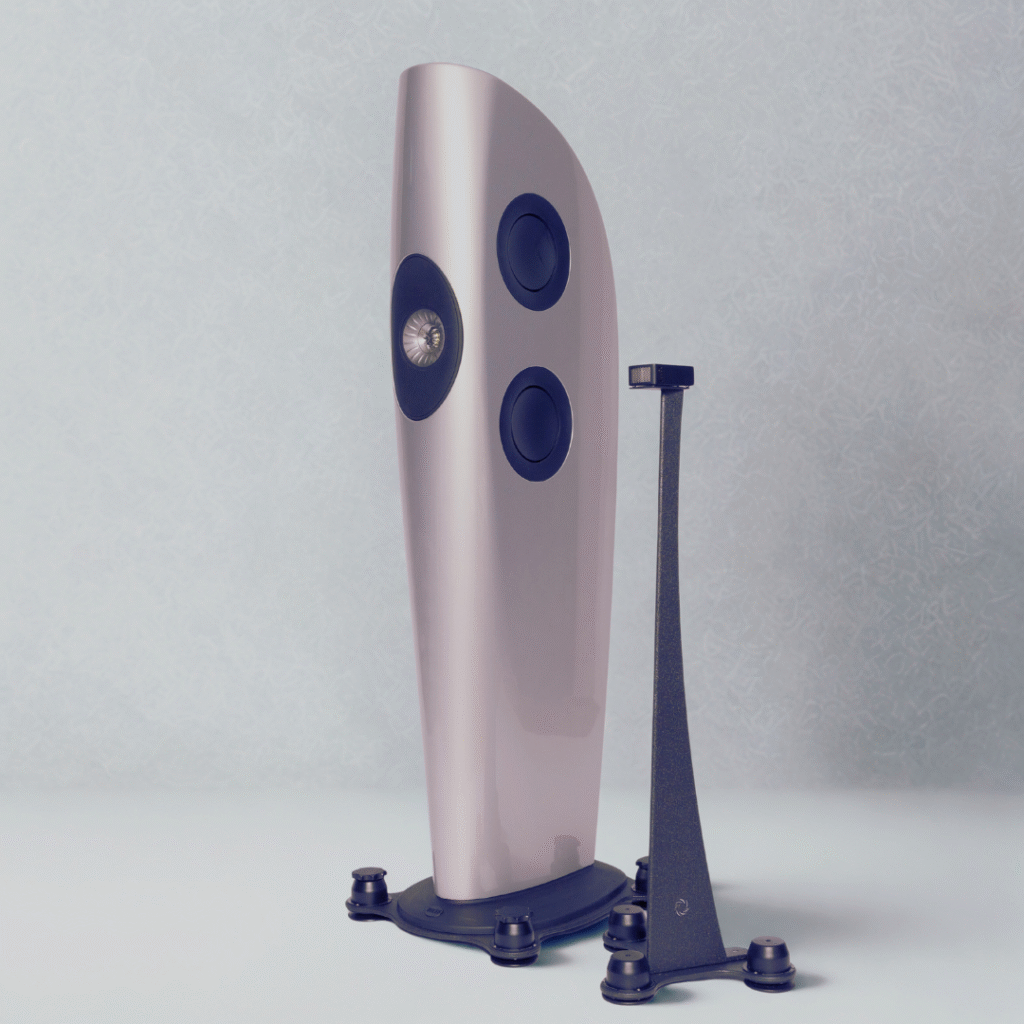

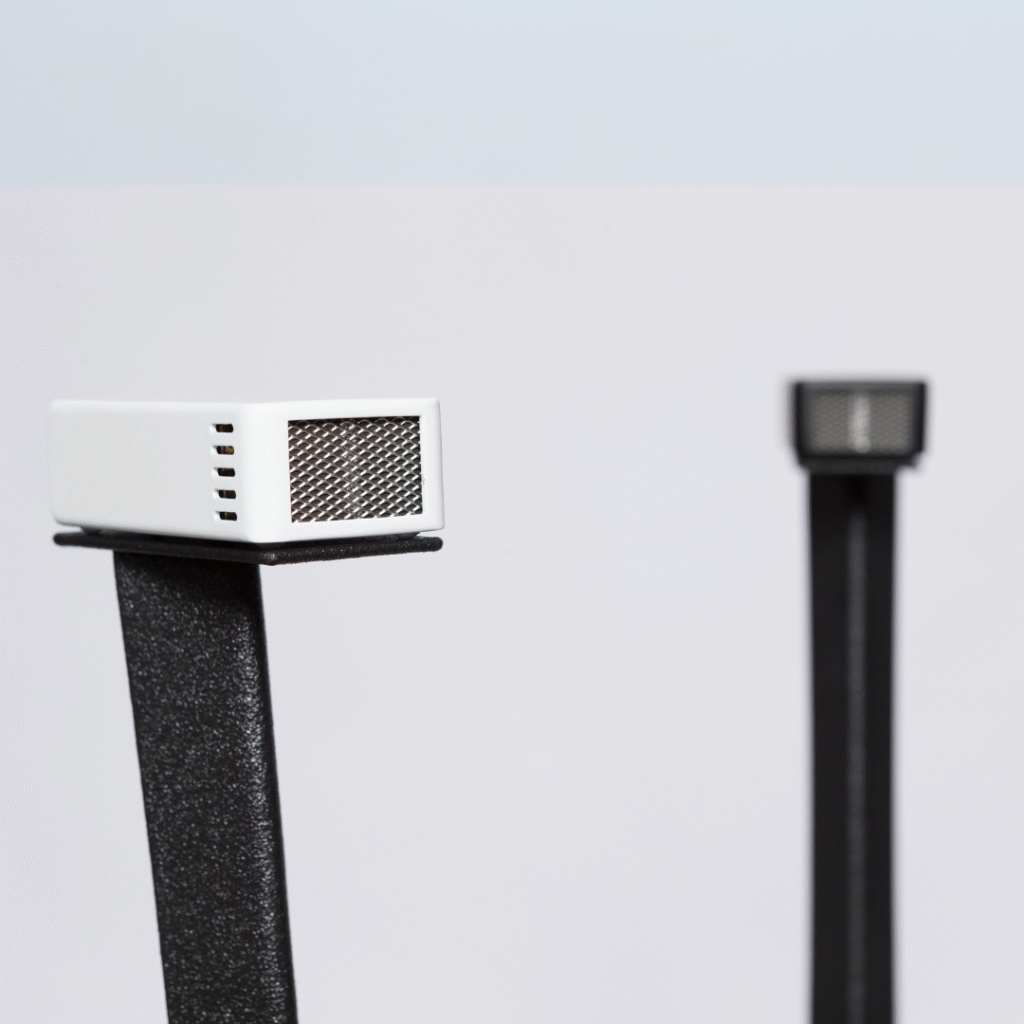

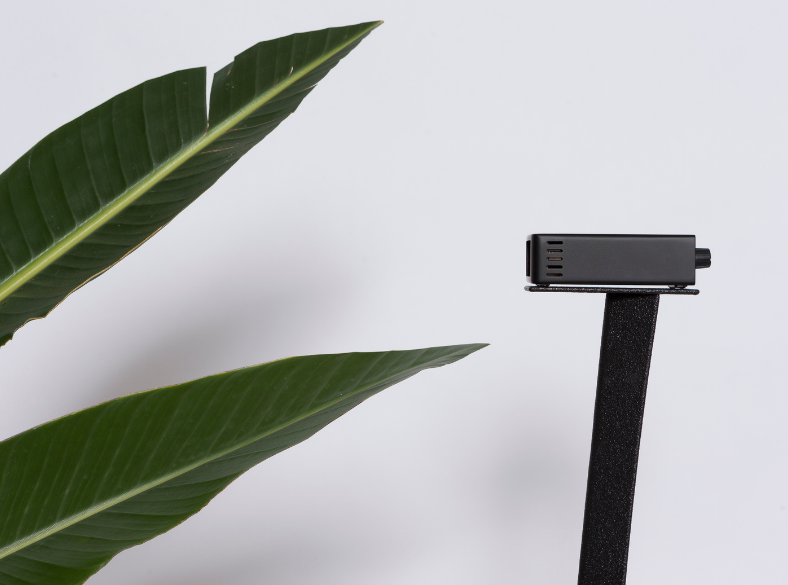

I had, however, been bitten by the supertweeter bug and I spent the next 15 years or so looking for the ideal supertweeter. The Pioneer supertweeters were amazing, but they were very bulky and were not a complete “package”, and the now defunct the excellent Murata spherical radiator Supertweeters had no level control and were very expensive. So I set about making a suitable unit in the Townshend Audio factory here in the UK. After two years of frustrating development, the Maximum Supertweeters arrived, in their cute miniature polished stainless steel case, in 1999, (now available also in satin black or matt silver). The secret of their success is the simplicity of the design and the set-up procedure. The 6-position crossover/level control allows them to integrate with speakers having a very wide range of sensitivity and their very small size allows them to fit in to almost any situation. Further, the supplied interconnecting wires make installation a doddle and there is no extra purchase necessary except for the Quad 57 brackets if needed.
Why do they work when we can only hear up to about 15 kHz and the Maximum Supertweeters extend to 80 kHz? The standard test for frequency response is to play a pure tone sine wave and to ask the listener to indicate if they can hear it or not. This test is basically flawed since sine waves rarely if ever occur in nature. Extensive research has shown that it is the combination of the lower frequencies with the high frequencies that makes sound more realistic, just as a high resolution digital image looks clearer than a low resolution image because of the sharper delineation of the visual edges due to the higher amount of information in the hi-res image. So it is with audio. The ear is very sensitive to very fast transients and is able to detect very small time arrival differences between the two ears. This capacity evolved in the wild where it is essential to hear the slightest unnatural sound (breaking twig) when sleeping in the open. This capacity only diminishes slightly compared with normal frequency roll-off sensitivity to sine waves with age- related hearing loss.
Many normal sounds have frequencies extending way above 20 kHz, (see http://www.cco.caltech.edu/~boyk/spectra/spectra.htm), hence the popularity of high resolution audio in the form of Hi-Res downloads, SACD, DVD Audio and quality vinyl replay. The higher the bandwidth, even up to 100 kHz, makes a difference in the fidelity of the overall perceived sound. This can easily be proved experimentally. Latest research suggests that the very high frequency sounds are picked up by the temple and even the eye, where they are sent directly to the brain by neuron transfer, totally bypassing the ear.
Why do Supertweeters work on CD replay which extends only to 21 kHz, when the speakers extend to 20 kHz or beyond? The most common tweeter is the dome tweeter. The dome tweeter may measure well on sine waves, but, when playing music, less than 1% of the electrical energy sent to the tweeter is converted to sound, the rest being dissipated over a short time by rippling around the dome, while slowly converting to heat. The wave pattern of this dissipating sound is chaotic, not unlike the wave pattern in the sea on a rough day in an enclosed harbour. The Supertweeter however, which gently rises in output from about 12 kHz up, does not suffer from this problem as the ultra-light ribbon ceases moving almost instantly when the signal stops. This ensures a very accurate high frequency transient response where before there was smearing. An interesting property of the ear is that it responds to the fastest rise-time signal, from the supertweeter and ignores the jumbled time- smeared output from the dome tweeter. This is why it is unnecessary to attenuate the existing tweeter when adding the supertweeter.
How do they sound? The effect on the sound with the addition of the Supertweeters is quite unexpected. Bass notes sound clearer, especially plucked string bass. Everything in the sound stage appears cleaner and smoother with far greater width and depth. There is a sense of ease about the sound. The effect is most profound when the supertweeters are taken away. It is not subtle! A peculiar effect is that they are inaudible in the listening seat when the main speaker is disconnected. The ear works in mysterious ways! And there are many thousands of happy Supertweeter owners out there who will, agree.
Townshend Audio has included Maximum supertweeters within the reference system for years and obviously High Res formats have never sounded so good, but what about the sound improvement on other lower res formats? We have listed some essential reading:
A white paper “The world beyond 20kHz”
An article on “Why do we need Supertweeters?”
The story behind the development from Max Townshend “How the Maximum Supertweeter was born“.
Somewhat initially skeptical, Tony Bolton soon finds the Maximum Super Tweeters a permanent fixture in his home HiFi system….
“Obviously, given the frequency response of these components, I expected any alteration to the sound to be focussed on the midrange and the treble, but was pleasantly surprised to find that this change included an opening up of the bass sound as well, adding layers of texture to its tonal qualities, also surprised me was the fact that high-frequency sound,such as record surface noise, instead of being enhanced, was actually reduced in perceived presence and became less intrusive”
Tony’s conclusions that both musical instruments and our response to their stimuli extend into the ultrasonic spectrum seem to hit the nail on the head. Listening to music with out them is sacrilege.
To read the full review please refer to Hi-Fi WORLD – January 2014 Issue
From the very first moment that CD landed on our shores, audio diehards were unconvinced that its limited 44.1kHz sample rate and mere 16-bit quantisation accuracy was anything like sufficient. The sample rate came in for greatest criticism because it limited the practical bandwidth to 20kHz. Surely we needed a wider frequency response – closer to 40kHz, perhaps?
With the advent of DVD (Audio), SACD and, most crucially, the burgeoning availability of ‘high resolution’ 96kHz music downloads, that’s exactly what we’ve now got [see Graph, below]. And most of us reckon our hi-fi systems sound all the better for it. However, the medical community is still at odds as to how, or indeed if and why, sonic content above 20kHz should be perceptible at all. So who’s right?
SUPER SONIC
The reason for this musing? A clutch of journal reprints on this very subject mailed to Hi-Fi News, among others in the industry, by Townshend Audio. Bearing in mind the company manufactures an add-on supertweeter, it not unreasonably has a vested interest in the subject.
ABOVE: Afro Cuban Latin Jazz from El Vuello –an iTrax download with music above 20kHz
ABOVE: Townshend’s ribbon supertweeter offers a claimed 20kHz to 70kHz (±3dB)
But the literature bears close examination. First off, a team from Tokyo’s NHK Science and Technical Research Labs reported a ‘Perceptual discrimination of very high frequency components in musical sound…’ [AES Convention Paper 6298, 2004]. The experiment involved two separate digital reproduction chains, one feeding musical content below 20kHz into B&W 801s which were augmented by Pioneer PT-R9 supertweeters fed content expressly above 21kHz. The master tracks were recorded at 192kHz using microphones with a response extending to 100kHz, albeit with a broad +10dB uplift above 10kHz.
The ultrasonic portion of the recording was switched in and out and the reaction of some 13 test subjects evaluated. To paraphrase, although their sensitivity was linked to the duration of the (listening) test, two of the panellists were reportedly able to discriminate between the 20kHzlimited and full-bandwidth versions with decent statistical odds.Interestingly, when the response of their hearing was measured with standard tones, neither panellist exceeded 22kHz.
As the researchers concluded ‘We have no hypothesis or scientific reasons that can explain this finding…’ It is worth bearing in mind that the audio and ultrasonic passbands of the two parallel speaker chains were separated by very high order FIR filters, achieving a ‘It is postulated that our eyes may act as acoustic lenses for our ears’90dB rejection within a transition band of just 1kHz. So were these subjects really listening to ultrasound in the raw?
Plain vanilla CD uses a similar low-pass filter regime and it’s the inherent phase distortion, among other mechanisms, that we seek to avoid with 96kHz+ digital recordings and their gentler, higher frequency filtering. So while 96kHz/192kHz digital audio encompasses the ultrasonic it may sound better simply because any debilitating numbercrunching is deferred to inaudibility.
EYES FRONT
But perhaps there’s another reason to doubt the correlation between the ‘response’ of our hearing and our perception of ultrasound. A reason, in part, that lies in the use of headphones to measure human hearing response. As a more recent submission to the International Tinnitus Journal [Vol. 13, No.1, 3-10 (2007)] suggested, our eyesmay serve as ‘fenestrations to the ears’.
Having measured the physical frequency response of the eye up to 60kHz, it is postulated that our eyeballs may act as acoustic lenses for the ears, ‘passing frequencies beyond the impedance-matching capacity of the eardrum.’ No listening tests here but electroencephalograms that illustrate physiological activity in the brainstem and thalamus ‘when ultrasonic musical frequencies are combined with the musical spectrum below 22kHz.’ Whichever sage suggested that our ‘eyes are the windows to our soul’ was probably onto something.
